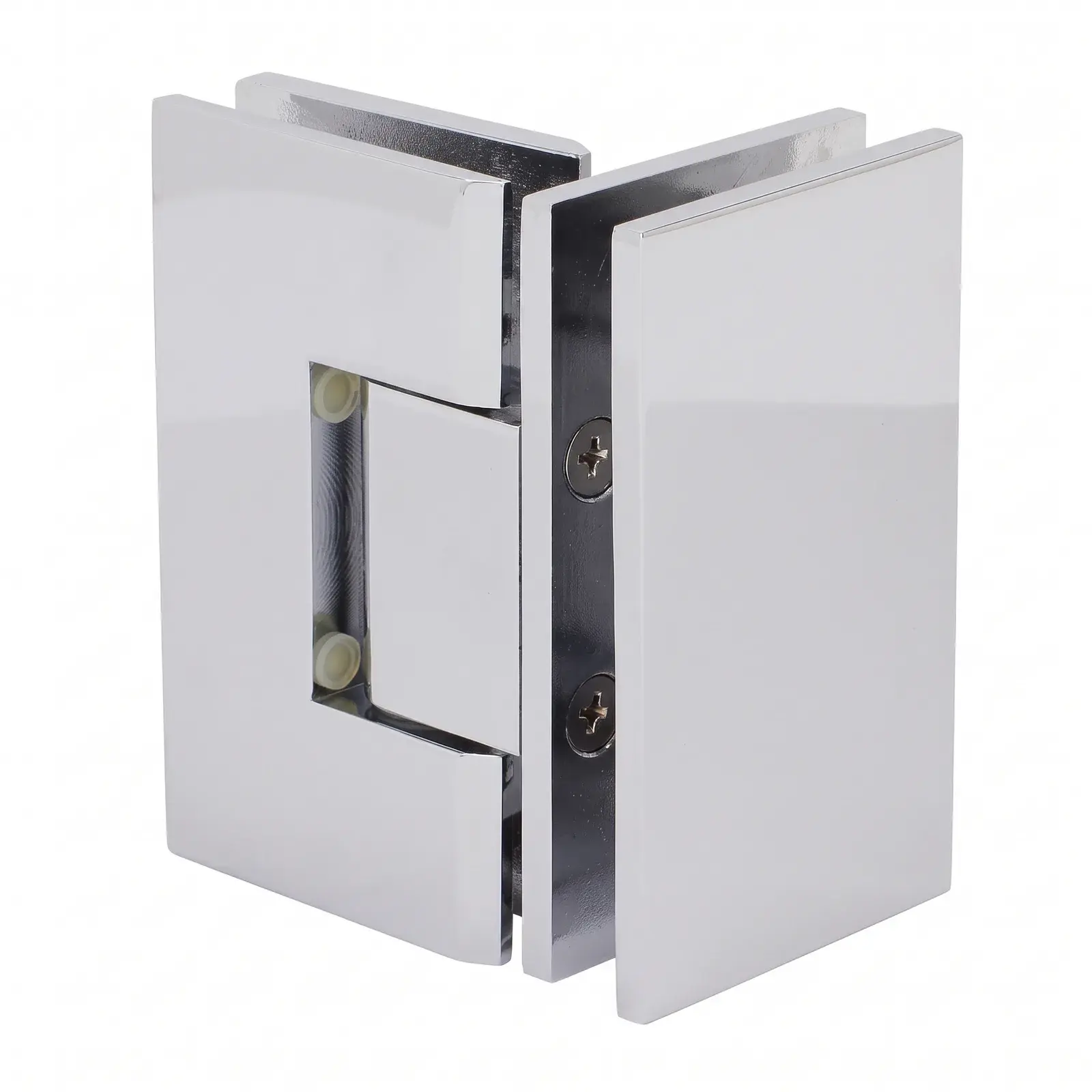

Heavy Duty Glass to Glass 90 Degree Hinge

Heavy-duty 90 degree glass-to-glass shower hinge, solid brass. Doors to 110 lbs with 2 hinges or 140 lbs with 3. Fits 3/8"-1/2" tempered glass.

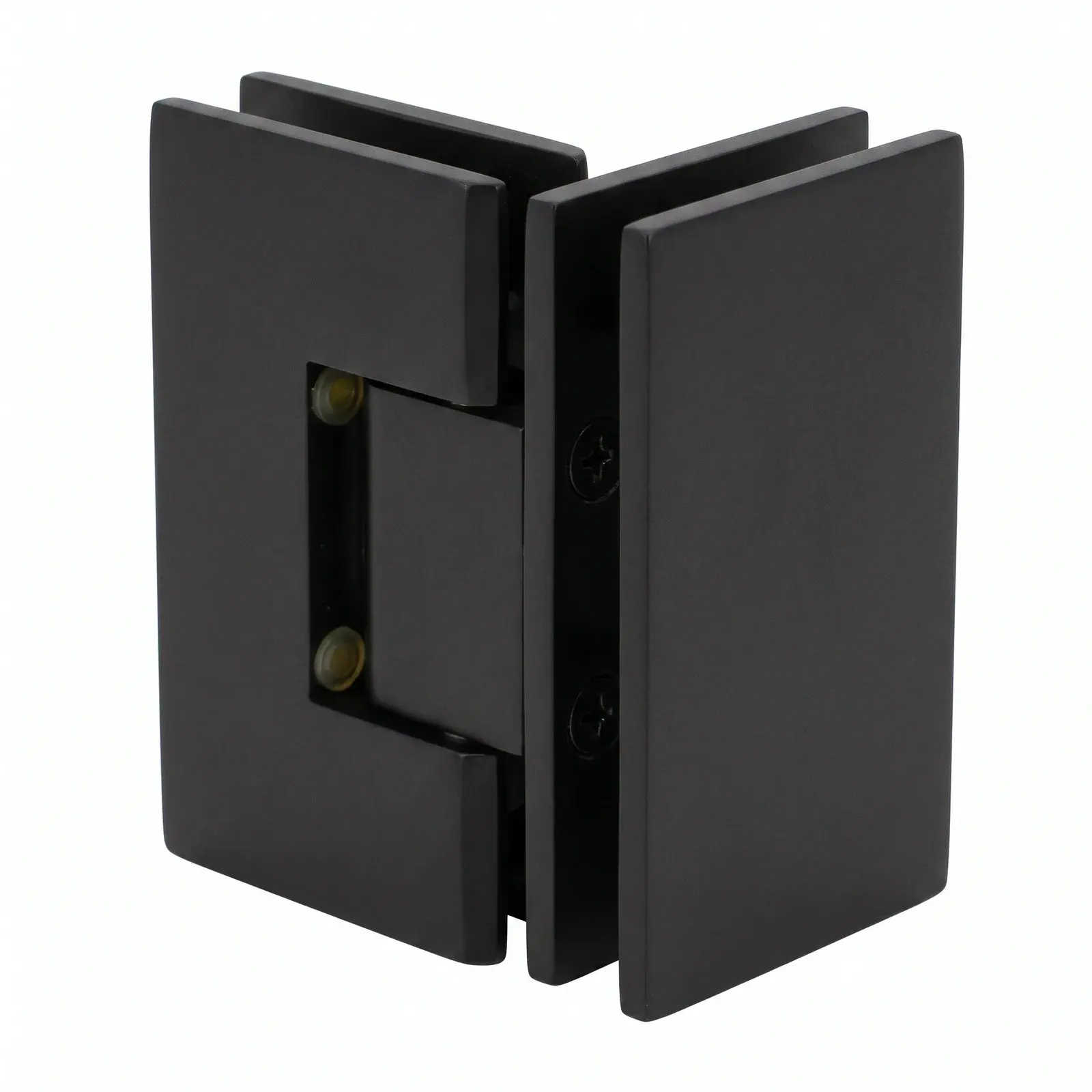

Heavy Duty Glass to Glass 90 Degree Hinge — photo 7 of 9
$62.00

Finish: Matte Black

18 in stockShips next business dayFree pickup in Medley

Delivery to Nationwide: arrives Thu, Oct 29 to Mon, Nov 2

SKU SINGULAR-104830-day returns on unused hardwareReturns policy

CRL equivalent: V1E092CH

For Glass Thickness
3/8" (10 mm) – 1/2" (12 mm)
Maximum Door Capacity (2 hinges)
110 lbs, 36" width (49.9 kg, 914.4 mm)
Maximum Door Capacity (3 hinges)
140 lbs, 36" width (63.5 kg, 914.4 mm)
Self-Centering
At 25 degree from the closed position; reversible 5-degree pivot pin
Material
Solid Brass
Weight
2.77 lbs
Package Size
4.4 × 3.15 × 3.75 inches

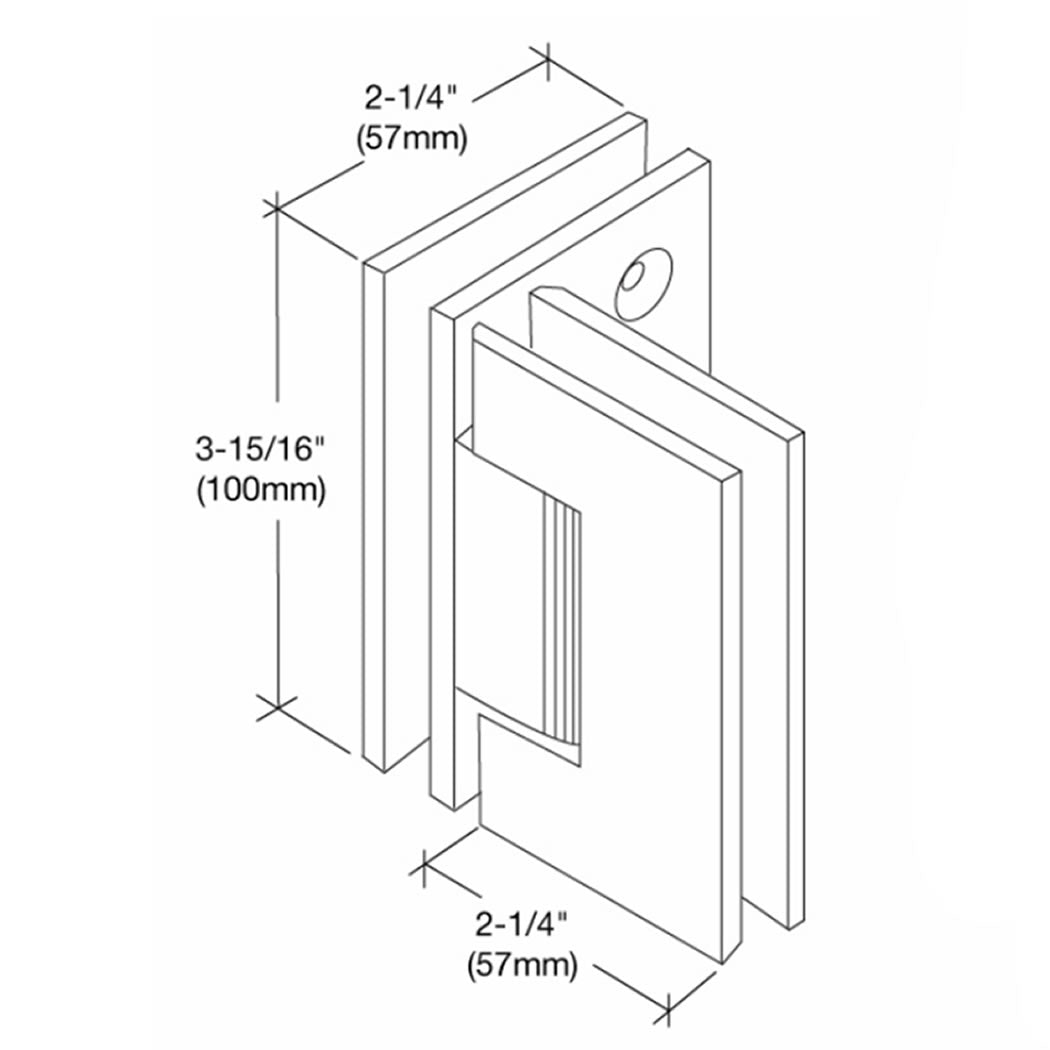

Hinge Plate Width
2-1/4" (57.15 mm)
Hinge Plate Height
3-15/16" (100.01 mm)
For Use With
Tempered glass only
Includes
Screws and gaskets
SKUs
SINGULAR-1048 · SINGULAR-1047 · SINGULAR-1046
Category
Shower Door Hinges
Brand
Singular Glass Hardware

Heavy-duty 90 degree glass-to-glass hinge in solid brass for corner frameless shower enclosures with larger, heavier doors. With two hinges it carries doors up to 110 lbs and 36" wide; adding a third hinge raises capacity to 140 lbs at the same width. The hinge is self-centering at 25 degrees from the closed position and comes equipped with a reversible 5-degree pivot pin. Fits 3/8" (10 mm) to 1/2" (12 mm) tempered glass; screws and gaskets are included. Available in Chrome Polished, Brushed Nickel, Matte Black, and Satin Brass.

Completes the system

More Shower Door Hinges →
Buying for jobs? Get partner pricing
Free local pickupMedley, FL warehouse
Same-day dispatchShips next business day · business-day orders placed before the daily cutoff ship the same day
30-day returnsOn unused hardware in the original packaging
Trade accountsPartner pricing for pros
